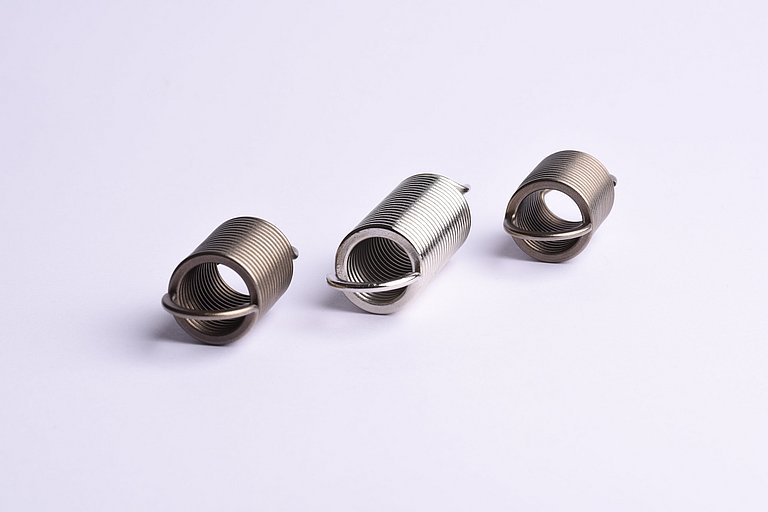

Oval Wire Tension Spring
The Oval Wire Tension Spring is a precision-engineered spring solution designed for dynamically stressed applications where installation space is limited. With its patented oval wire cross-section, it delivers exceptional durability, higher spring force, and a service life far superior to conventional round wire tension springs.
Vivek Sawala
National Sales Manager
Product Value Engineered for Endurance: Understanding the Oval Wire Tension Spring
An Oval Wire Tension Spring is manufactured using wire with an oval cross-section rather than a traditional circular profile - a difference that produces a dramatic improvement in performance and longevity.
In standard round wire springs, the transition between the spring body and the eyelet concentrates bending stress, causing premature fatigue. The oval wire geometry redistributes this stress more evenly, reducing critical bending stress at the eyelet transition by approximately 43% - resulting in a stronger eyelet and significantly greater resistance to cyclic loading.
Beyond durability, the oval design stores more energy in a smaller envelope, delivers a flatter and moment-free characteristic curve, and shows far less relaxation over time. When combined with shot peening under preload as a post-treatment, the spring achieves full fatigue resistance and relaxation-free performance across millions of load cycles - making it the superior choice for demanding, high-dynamic applications.
Available Configurations to Match Every Application Requirement
HENNLICH offers the Oval Wire Tension Spring in a wide range of variants to suit diverse engineering needs:

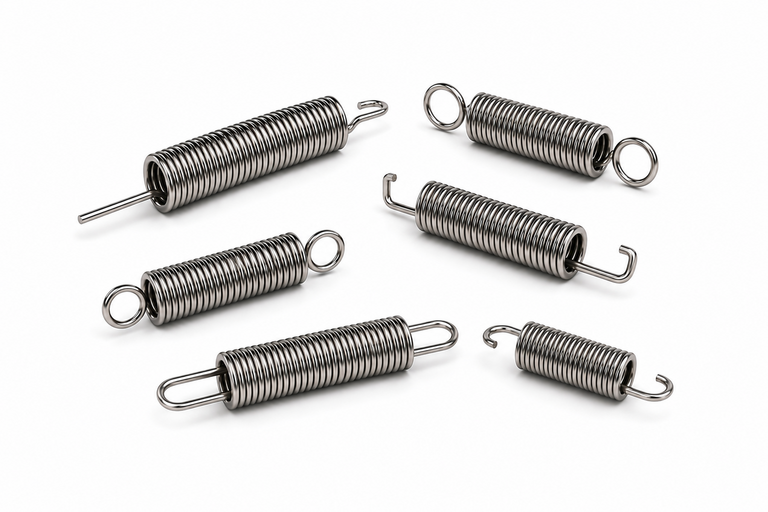

- Hook/Eyelet Type - Straight hooks, angled hooks (90° or 180°), and extended eyelets to suit different mounting geometries.
- Wire Cross-Section - Multiple width-to-height ratios available; flatter ovals for maximum stress redistribution, near-square ovals for balanced space efficiency.
- Material Grade - High-grade Spring steel, stainless steel for corrosive environments, and specialty alloys for high-temperature or chemically aggressive conditions.
- Surface Treatment - Untreated, zinc-plated, phosphate, or shot-peened under preload for maximum fatigue resistance.
- Dimensional Specification - Standard catalogue dimensions covering a wide range of wire diameters, coil lengths, and spring forces. Custom variants produced to drawings, samples, or technical datasheets are also available.
Performance Benefits That Go Beyond the Conventional
The Oval Wire Tension Spring from HENNLICH delivers measurable advantages over standard round wire alternatives:
- Longer Service Life — Reduced bending stress at the eyelet extends fatigue life, lowering maintenance frequency and unplanned downtime.
- Higher Energy Storage — More elastic energy stored within the same installation envelope.
- Reduced Installation Space — Equal or superior performance in a considerably smaller footprint.
- Higher Spring Constant — Stiffer, more responsive spring for precise force control.
- Greater Spring Travel — Extended usable deflection for greater design flexibility.
- Fatigue & Relaxation Resistance — Shot peening under preload neutralizes surface tensile stress, preserving calibrated spring force throughout the product's working life.
Flat, Moment-Free Characteristic Curve — More linear and predictable force-displacement behaviour, simplifying design and ensuring assembly consistency.
Where Precision and Reliability Cannot Be Compromised
The Oval Wire Tension Spring's compactness, strength, and longevity make it the preferred choice across multiple industries:
- Automotive Engineering - Engine components, transmission systems, and throttle return mechanisms requiring millions of reliable load cycles.
- Mechanical Engineering - Clamping systems, conveyor components, and actuation assemblies under continuous dynamic loading.
- Electrical & Electronics - Circuit breakers, relay contacts, and connectors needing precise, consistent spring force over long service lives.
- Medical Technology - Surgical instruments and diagnostic devices where miniature dimensions and predictable performance are critical.
- Aerospace & Defence - Control surface mechanisms and locking assemblies requiring certified fatigue resistance.
- Consumer Products & Appliances - Latches, retractable mechanisms, and ergonomic adjustment systems.
- Textile & Printing Machinery - Tensioning and feed mechanisms demanding consistent force across high-speed cycles.
HENNLICH supplies Oval Wire Tension Springs across all these sectors, with fast delivery from stock and full custom manufacturing capabilities.
HENNLICH – Your Trusted Partner for Industrial Spring Solutions in India
HENNLICH is a globally established industrial components specialist with deep expertise in springs, sealing technology, lubrication systems, hydraulic components, and engineering solutions. With decades of application engineering experience, HENNLICH delivers components built to perform in the most demanding industrial environments.
In India, HENNLICH Private Limited is based in Pune, Maharashtra, at the heart of the country's automotive and engineering manufacturing corridor. From here, HENNLICH serves customers across mechanical, automotive, energy, and process industries with both standard catalogue products and custom-engineered solutions.
Every product in the HENNLICH portfolio is backed by technical expertise, rigorous quality assurance, and responsive customer support — whether you need a single prototype or large-volume serial supply. Contact the HENNLICH India team today to discuss your Oval Wire Tension Spring requirements.
Your added value.
Frequently Asked Questions
The oval cross-section reduces the critical bending stress at the eyelet transition by ~43%, delivering up to 1000× longer service life, 36% more energy storage, and a 36% smaller installation footprint compared to equivalent round-wire springs.
HENNLICH offers high-grade spring steel, stainless steel for corrosive environments, and specialty alloys for high-temperature or chemically aggressive conditions, with multiple surface treatment options including shot peening under preload.
Yes. Custom Oval Wire Tension Springs are produced to customer drawings, samples, or detailed technical specifications, covering all dimensional and material parameters.
Shot peening under preload is the premium option — it introduces compressive residual stresses that eliminate fatigue-causing tensile stress on the wire surface, ensuring relaxation-free performance over the spring's service life.
Standard variants are available from a large, stocked inventory for fast dispatch, including small quantities. Lead times for custom variants are confirmed at the time of order.
