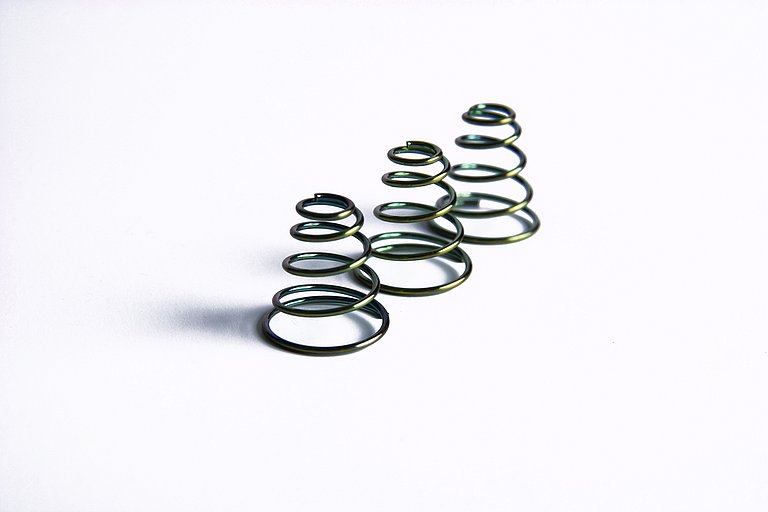

Conical Compression Spring

A conical compression spring is designed with a tapered shape that allows coils to telescope into each other, saving space while delivering reliable force. HENNLICH offers precision-engineered conical springs that ensure durability, stability, and efficient performance in demanding applications.

Downloads

Vivek Sawala

National Sales Manager

What is a Conical Compression Spring?

Understanding Tapered Spring Technology for Efficient Load Handling

A conical compression spring is a type of spring with a cone-shaped design, where the diameter gradually decreases from one end to the other. This unique geometry allows the spring to compress into a very compact height, making it ideal for applications with limited installation space.

Unlike standard cylindrical designs within the broader category of types of compression springs, conical springs offer improved stability, reduced buckling risk, and progressive load characteristics. HENNLICH designs these springs to deliver consistent force, longer service life, and reliable performance in industrial environments.

Variants of Conical Compression Springs

Different Designs to Suit Diverse Industrial Needs

HENNLICH provides a wide range of conical compression spring variants to meet specific application requirements:

Standard Conical Compression Springs – Suitable for general-purpose applications
Heavy-Duty Conical Springs – Designed for high-load and high-stress environments
Precision Conical Springs – Engineered for applications requiring accurate force control
Custom Conical Compression Springs – Tailored to specific dimensions and load requirements
Material Variants – Available in stainless steel, alloy steel, and corrosion-resistant finishes

With HENNLICH, customers can choose from a variety of configurations that ensure optimal performance and compatibility.

Advantages of Conical Compression Springs

Why Choose Conical Springs for Advanced Engineering Applications

Using a conical compression spring offers several key benefits:

Space-Saving Design – Telescoping coils reduce installation height
Enhanced Stability – shape minimizes buckling under load
Progressive Spring Rate – Provides controlled force distribution
Improved Durability – Designed for long service life
Lightweight and Efficient – Ideal for compact systems
Versatile Performance – Suitable across multiple conical spring uses

HENNLICH ensures that every spring is manufactured with precision to deliver maximum efficiency and reliability.

Applications of Conical Compression Springs

Where Conical Springs Deliver Maximum Value

Conical compression springs are widely used across industries where space and performance are critical:

Automotive components and suspension systems
Electrical and electronic devices
Industrial machinery and automation systems
Medical devices requiring compact mechanisms
Aerospace and precision engineering applications

Thanks to their unique design, conical springs extend across applications requiring compactness, stability, and controlled force. HENNLICH provides solutions tailored to each application requirement.

About HENNLICH

Your Trusted Partner for High-Quality Spring Solutions

HENNLICH is a globally recognized provider of industrial components and engineered solutions. With extensive expertise in spring technology, HENNLICH delivers high-performance products designed to meet the most demanding industrial standards.

From standard designs to customized solutions, HENNLICH ensures precision, reliability, and long-term performance. By combining engineering excellence with customer-focused support, HENNLICH helps businesses optimize their systems and improve operational efficiency.

Your added value

Large selection

An extensive range of springs, along with a wide variety of variants, is available in stock.

Made to measure

Custom spring solutions based on drawings, samples or technical specifications.

Fast delivery

Fast availability thanks to large stock levels, even for small quantities.

Highest quality

Quality manufacturing according to industry standards with reliable testing and material values.

Frequently Asked Questions (FAQs)

A conical compression spring is used in applications where space-saving, stability, and controlled force are required, such as automotive and industrial machinery.

Unlike standard cylindrical springs, conical springs have a tapered shape that allows them to compress into a smaller height and resist buckling.

Common conical spring uses include compact mechanical systems, electronics, medical devices, and automotive applications.

Yes, HENNLICH offers customized conical compression springs based on size, material, and load requirements.

They are typically made from stainless steel, carbon steel, or alloy materials, depending on the application and environment.
