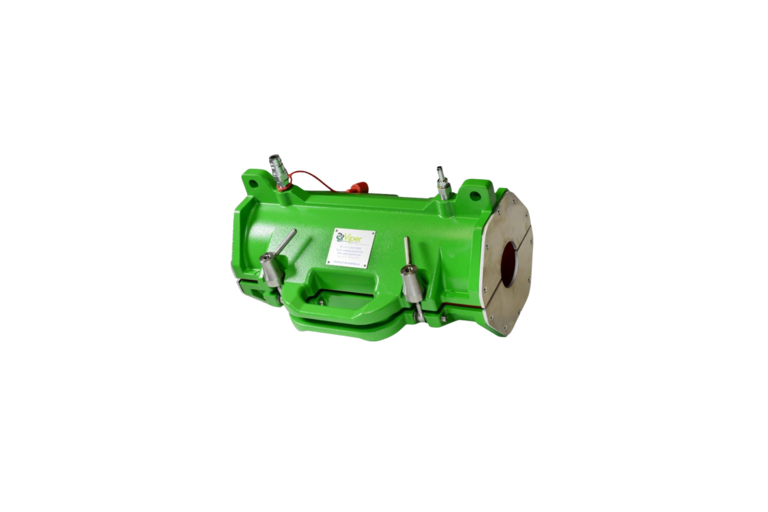

Viper WRL Maxi MK 2 Wire Rope Lubricator (50mm–165mm)

The Viper WRL Maxi MK 2 Wire Rope Lubricator is a heavy-duty, high-pressure lubrication system engineered for large-diameter wire ropes from 50mm to 165mm. Designed for extreme industrial and offshore applications, the Maxi MK 2 delivers fast, clean, and deep core lubrication at speeds up to 2,000 metres per hour.

By forcing grease directly into the core of the wire rope, the Viper WRL Maxi MK 2 provides total internal and external coverage, effective moisture displacement, and long-term corrosion protection for critical lifting and motion systems.

Recommended Applications

ROV Cables
Vessel Crane Ropes
Underwater Offshore Wire Ropes
Drag Lines

Key Benefits

Lubricates large wire ropes 50mm–165mm
High-speed lubrication up to 2,000 m/hr
Deep core grease penetration for maximum corrosion protection
No overspray, no leakage, no wasted lubricant
Reduced maintenance time and extended rope service life
Designed for offshore and heavy-duty environments
Safety

How the Viper WRL Maxi MK 2 Works

The Viper WRL Maxi MK 2 uses a precision-machined cast aluminium collar fitted with long-dwell polyurethane seals designed specifically for large-diameter wire ropes. As the rope passes through the collar, the seal molds to the rope profile, creating a pumping action that forces lubricant deep into the rope core.

A secondary seal chamber captures excess grease, ensuring contained lubrication with minimal environmental impact.

Technical Specifications

Wire Rope Diameter Range: 50mm – 165mm
Lubrication Speed: Up to 2,000 m/hr
Pump Options:
- Standard: 4.5 kg/min
- High-Flow Option: 13 kg/min (recommended for ropes >85mm)
Seal Material: High-performance polyurethane
Seal Life: Approx. 12,000–15,000 m (rope condition dependent)

Features & Design Advantages: -

Built-In Handles

Allows easier and safer mounting onto large wire ropes
Improves handling in offshore and heavy-industrial environments

High-Pressure Grease Pump Options

4.5 kg/min standard pump for controlled lubrication
Optional 13 kg/min high-flow pump for faster lubrication of large and long ropes
Reduced downtime and improved productivity

Extended Seal Design

Longer seal length increases dwell time
Optimized for deeper lubricant penetration on large-diameter ropes
Dual seal chamber captures excess lubricant

Metal Alloy Scraper Plate

Enables safe entry of damaged or broken wire strands
Protects seals and wire ropes during operation

Wide Diameter Coverage

One Viper Maxi MK 2 system services wire ropes from 50mm to 165mm using interchangeable seals

Health, Safety & Environmental Advantages:

Fully enclosed lubrication system
No grease spray, dripping, or contamination
Every gram of grease applied directly to the rope
No direct operator contact with the lubricant
Lubrication performed from a safe working distance
Lightweight design relative to rope size for safer handling

Viper WRL Maxi MK 2 Kit Contents: -

Supplied as a complete wire rope lubrication system, ready for operation:

Viper Maxi MK 2 high-strength cast aluminium collar
- Precision-machined aluminium alloy
- Stainless steel hardware for corrosion resistance
- Integrated handles for ease of use
- Suitable for ropes up to 165mm (6½")
Grease Pump Options (190kg Drum Size):
- 4.5 kg/min standard output
- 13 kg/min high-flow output (recommended for ropes >85mm)
Twin lubricant inlets for maximum grease coverage
Air regulator with moisture trap, gauge, and isolation valve
10m high-pressure supply hose with couplings both ends
Clear lubricant drain hose
1,200kg-rated ratchet retaining straps and bow shackles
Heavy-duty, fully welded aluminium storage case

Correct seals and scrapers must be selected to suit rope diameter.

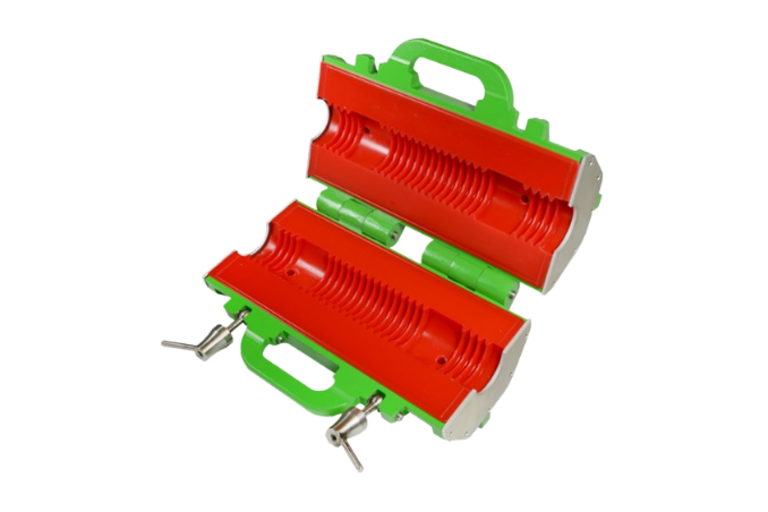

Viper MK 2 Polyurethane Seals

The Viper MK 2 Polyurethane Seal is the core component of the WRL Maxi system. Its advanced seal profile and polyurethane formulation enable deep grease penetration into the rope core, where corrosion is most likely to occur.
