Viper Mid MK 2 Wire Rope Lubricator – High-Pressure System for 6–67mm Ropes

The Viper Mid MK 2 Wire Rope Lubricator (WRL) is an automated, high-pressure lubrication system engineered for the controlled application of grease to wire ropes with diameters ranging from 6mm to 67mm. The system delivers lubricant at rates of up to 2,000 metres per hour, ensuring efficient servicing with minimal operational interruption.

By applying lubricant under pressure directly into the rope core, the Viper Mid MK 2 achieves full internal and external coverage, effective moisture displacement, and long-term corrosion protection.

Operating Principle

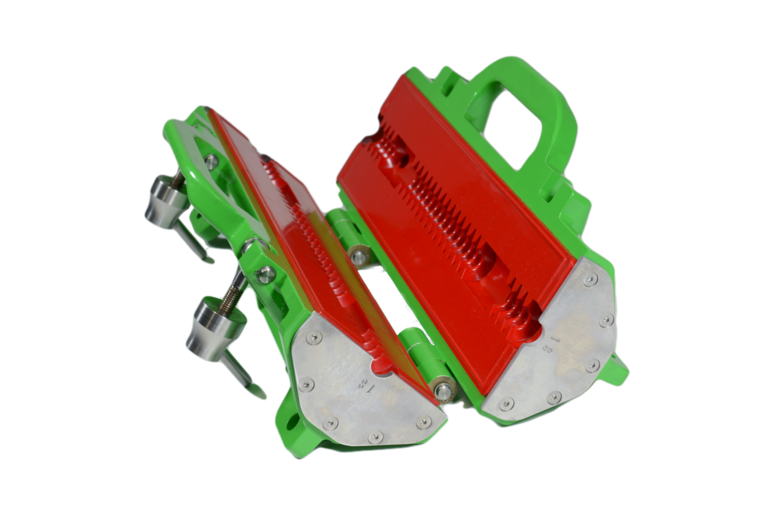

The Viper WRL system uses a precision-machined aluminium collar fitted with a high-abrasion-resistant polyurethane seal. During operation, the seal Molds to the rope geometry, creating a dynamic pumping action that forces lubricant into the interstices and core of the wire rope. This process ensures consistent grease penetration where internal corrosion typically initiates.

Excess lubricant is captured within a secondary seal chamber, eliminating external leakage and environmental contamination.

Technical Specifications

Wire Rope Diameter Range: 6mm – 67mm
Lubrication Speed: Up to 2,000 m/hr
Pump Output: 4.5 kg/min
Maximum Pressure: 370 bar
Seal Material: High-performance polyurethane
Seal Service Life: Approx. 12,000–15,000 m (dependent on rope condition)

Key Engineering Features: -

High-Pressure Lubricant Delivery

Maintains consistent flow across varying ambient temperatures
Enables rapid lubrication without compromising penetration quality

Polyurethane Seal System

High abrasion resistance for extended service life
Flexibility allows the seal to conform to the rope geometry
Continuous contact ensures uniform lubricant distribution

Dual Seal Chamber Design

Captures excess lubricant
Prevents environmental discharge
Maintains clean work areas

Metal Alloy Scraper Plate

Allows safe passage of broken or damaged wire strands
Protects the seal and rope during operation

Modular Diameter Compatibility

One system accommodates multiple rope sizes through interchangeable seals

Health, Safety & Environmental Performance

Fully enclosed lubrication process
Zero lubricant overspray or waste
No operator contact with grease
Lightweight components for safer manual handling
Lubrication performed from a safe operating distance

Applications :-

Wharf Cranes
Protects wire ropes from corrosion and wear caused by marine exposure.
Ship Cranes
Prevents saltwater corrosion and reduces fatigue during lifting operations.
ROV Cables
Reduces internal abrasion and protects against water ingress.
Mine Winders
Minimizes wear and fatigue under high loads and dusty conditions.
Mobile Cranes
Reduces friction and extends rope life during frequent bending.
Oil & Gas Platforms
Provides corrosion protection in harsh offshore environments.
Anchor Ropes
Protects against seawater corrosion and shock load damage.
Deck Winches
Ensures smooth operation and reduces rope wear.
Overhead Cranes
Reduces fatigue and improves rope service life.
Ship Loaders
Protects against abrasion and corrosion during continuous operation.

Kit Contents

The Viper Mid MK 2 is supplied as a complete operational system:

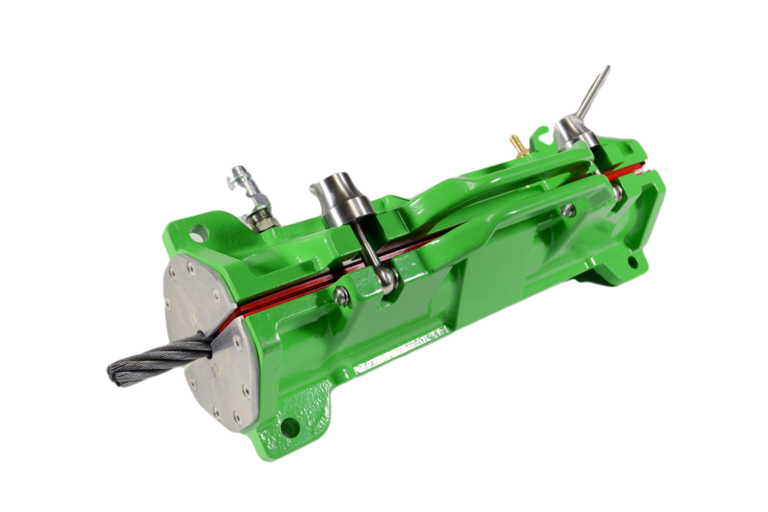

High-strength cast aluminium collar with stainless steel hardware
High-volume grease pump (4.5 kg/min @ 370 bar)
Air regulator with moisture trap, gauge, and isolation valve
4m high-pressure ½" lubricant delivery hose
High-pressure lubricant metering valve
Clear drain hose
Ratchet straps and shackles
Aluminium storage case
Carry strap for the collar

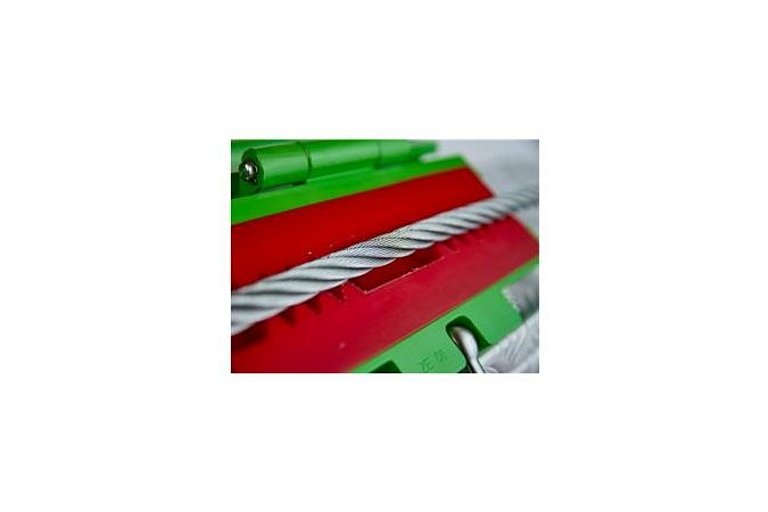

Viper MK 2 Polyurethane Seals

Viper MK 2 seals are field-proven for durability and performance. Their optimised polyurethane formulation enables deep penetration of lubricant while resisting wear under continuous operation.

Ropes should be physically measured before seal selection to account for dimensional variation in service.
