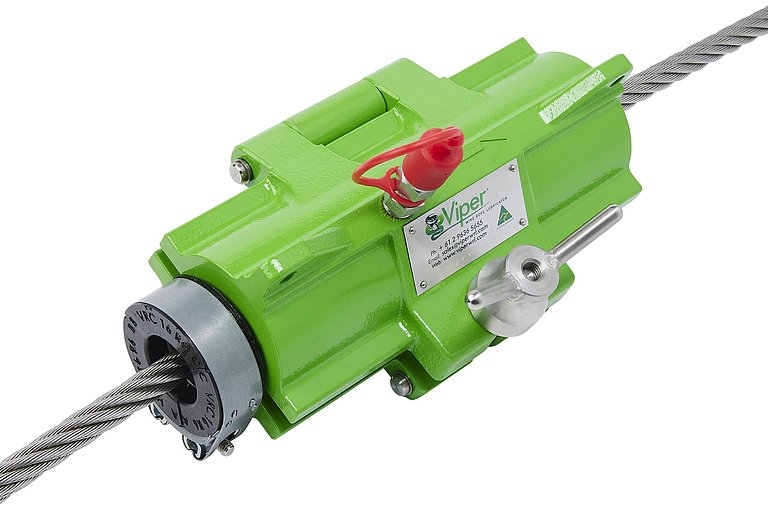

Wire Rope Lubricator Mini

The Wire Rope Lubricator MINI delivers deep-core lubrication in a small, efficient package — ideal for tight spaces and lighter-duty applications without compromising performance.

Downloads

Pradipkumar Dube

Assistant Manager

Wire Rope Lubricator Mini (6 mm to 44 mm) – Precision Wire Rope Lubrication System

The Viper Mini MK 3 is a compact, high-performance wire rope cleaning and lubrication system engineered for smaller-diameter and hard-to-access applications. Designed for wire ropes ranging from 6 mm to 44 mm in diameter, it delivers efficient, controlled lubrication at speeds of up to 2,000 metres per hour.

Using a high-pressure sealing system, the Viper Mini MK 3 forces lubricant deep into the rope core, ensuring superior grease penetration, effective moisture displacement, and full 360-degree coverage. This process reduces internal corrosion, minimises wear, and extends service life, while providing a safe, consistent, and repeatable maintenance solution.

The Wire Rope Lubricator Mini from HENNLICH is a compact, high-efficiency wire rope lubrication system engineered for controlled, consistent, and reliable wire rope greasing. Designed for industrial applications where space, precision, and lubrication performance are critical, the Viper Mini ensures deep lubricant penetration and effective sealing to extend wire rope service life.

By replacing inconsistent manual greasing methods, the Viper Mini delivers repeatable lubrication results, reduced lubricant consumption, and improved operational reliability.

Engineering Importance of Wire Rope Greasing

Wire ropes are subjected to continuous bending stress, surface abrasion, and environmental exposure. Inadequate lubrication leads to increased internal friction, corrosion, and accelerated fatigue failure.

An optimized wire rope greasing process must achieve the following:

Penetration of lubricant into the rope core
Uniform distribution across individual wires and strands
Protection against moisture and contaminants
Long-term reduction of wear and friction
Safety
Reduction in downtime
Reduce operation cost in long run
Lubrication can be done in operating condition

The Viper Mini wire rope lubricator is designed specifically to meet these technical requirements under real operating conditions.

Compact Design with Industrial Performance

The Viper Mini is developed for small to medium wire rope diameters and installations with limited available space. Despite its compact form factor, the system delivers high lubrication efficiency through a pressurized enclosure that surrounds the moving wire rope.

Its robust housing and precision-machined components ensure reliable operation in continuous-duty environments, making it suitable for both indoor and outdoor industrial applications.

High-Performance Wire Rope Seal System

A critical component of the Viper Mini is its advanced wire rope seal technology. The system uses replaceable sealing blocks that conform precisely to the wire rope diameter, forming a closed lubrication chamber.

This sealing design provides:

Controlled lubricant containment
Deep lubricant penetration into the rope structure
Prevention of lubricant leakage and overspray
Protection of adjacent machinery and work areas

The wire rope seal ensures maximum lubrication efficiency while significantly reducing lubricant waste.

Controlled Wire Rope Lubrication Process

The Viper Mini transforms wire rope greasing into a measurable and controlled maintenance process. Lubricant is supplied to the lubricator housing via an external pump and applied evenly as the wire rope passes through the sealing system.

This process results in:

Consistent lubrication
Reduced metal-to-metal contact
Improved corrosion resistance
Extended lubrication intervals

Compared to manual application, the Viper Mini improves lubrication quality while lowering maintenance labour and downtime.

Flexible Wire Rope Lubrication System Compatibility

The wire rope lubrication system is compatible with a wide range of lubricants, including:

Mineral-based oils
High-performance greases
Synthetic lubricants
Environmentally acceptable and biodegradable lubricants

This flexibility allows engineers to select lubricants based on load conditions, operating speed, ambient temperature, and environmental regulations.

Application Areas

The Viper Mini is suitable for a wide range of industrial lifting and motion systems, including:

Marine
Mining
Construction
Shipping
Oil & gas
Defence force

Its compact design and modular construction make it ideal for both retrofit installations and new equipment.

Installation, Maintenance, and Reliability

The Viper Mini is engineered for fast installation and minimal maintenance. The modular design allows sealing elements to be replaced quickly without complete system disassembly.

Key operational advantages include:

Short installation time
Simple adjustment for varying rope diameters
Long service life of sealing components
Reduced system downtime

This results in lower total cost of ownership over the wire rope lifecycle.

Proven Expertise and Engineering Standards

HENNLICH brings extensive expertise in lubrication technology and industrial fluid management. The Viper Mini is developed according to proven engineering principles and tested to ensure reliable long-term performance.

Each wire rope lubricator reflects HENNLICH’s commitment to quality, safety, and technical excellence.

Efficiency, Sustainability, and Cost Control

Precise lubrication contributes directly to operational efficiency and environmental responsibility. The Viper Mini minimizes lubricant loss through its sealed lubrication chamber, reducing waste and environmental impact.

Key benefits include:
